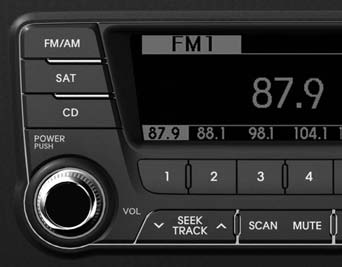

1. FM/AM Button The FM/AM button toggles between FM and AM. Listed below

1. FM/AM Button The FM/AM button toggles between FM and AM. Listed below are the paths as the system switches from FM to AM and back to FM.

• FM/AM : FM1➟FM2➟AM➟FM1...

2. POWER Button & VOL Knob

3. SEEK Button

• When the tune to the next lower station. • When the is pressed, it will automatically tune to the next lower station. • When the to the next higher station. is pressed, it will automatically tune to the next higher station.

4. SCAN Button

5. MUTE Button

When the button is pressed, stops sound and “Audio Mute” is displayed on LCD.

6. PRESET Buttons

• Press 1~6 buttons less than 0.8 seconds to play the station saved in each button.

• Press 1~6 buttons less than 0.8 seconds to play the station saved in each button.

Press 1~6 button more than 0.8 seconds or longer to save the current station

Press 1~6 button more than 0.8 seconds or longer to save the current station to the respective button with a beep.

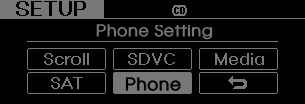

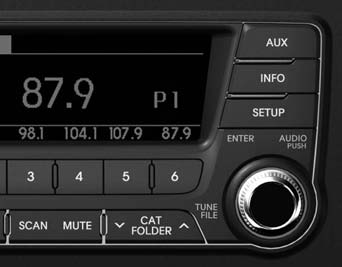

7. SETUP Button

Press this button to enter SETUP mode, If no action is taken for 8 seconds, it will return to previous mode.

In “SETUP” mode, rotate the TUNE knob to move the cursor between items, and push the TUNE knob to select.

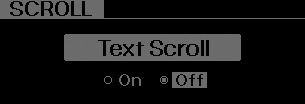

• SCROLL

• SCROLL

Select whether long file names are scrolled continuously (On) or just once (Off).

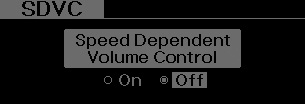

• SDVC (Speed Dependent Volume Control)

• SDVC (Speed Dependent Volume Control)

Select this item to turn the SDVC feature On or Off. If it is turned ON, volume level is adjusted automatically according to the vehicle speed.

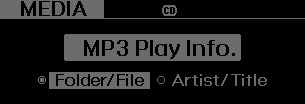

• MEDIA

• MEDIA

Select default display of MP3 play information. “Folder/File” or “Artist/Title” can be selected.

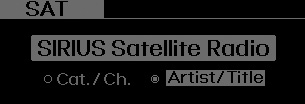

• SAT

• SAT

Select default display of SIRIUS® Satellite Radio mode. “Cat./Ch.” or “Artist/Title” can be selected.

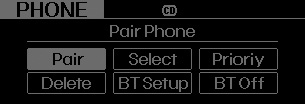

• PHONE

• PHONE

Select this item to enter BLUETOOTH® Wireless Technology setup mode. Refer to “BLUETOOTH® Wireless Technology PHONE OPERATION” section for detailed information.

8. TUNE & Audio Control Knob

8. TUNE & Audio Control Knob

Rotate the knob clockwise or counterclock wise to increase or decrease from current

Rotate the knob clockwise or counterclock wise to increase or decrease from current frequency.

(AM 10kHz, FM 200kHz)

Pressing the button changes the BASS, MIDDLE, TREBLE, FADER and BALANCE TUNE mode. The mode selected is shown on the display. After selecting each mode, rotate the Audio control knob clockwise or counterclockwise.

• BASS Control

To increase the BASS, rotate the knob clockwise, while to decrease the BASS, rotate the knob counterclockwise.

• MIDDLE Control

To increase the MIDDLE, rotate the knob clockwise, while to decrease the MIDDLE, rotate the knob counterclockwise.

• TREBLE Control

To increase the TREBLE, rotate the knob clockwise, while to decrease the TREBLE, rotate the knob counterclockwise.

• FADER Control

Turn the control knob clockwise to emphasize rear speaker sound (front speaker sound will be attenuated). When the control knob is turned counterclockwise, front speaker sound will be emphasized (rear speaker sound will be attenuated).

• BALANCE Control

Rotate the knob clockwise to emphasize right speaker sound (left speaker sound will be attenuated). When the control knob is turned counter clockwise, left speaker sound will be emphasized (right speaker sound will be attenuated).
