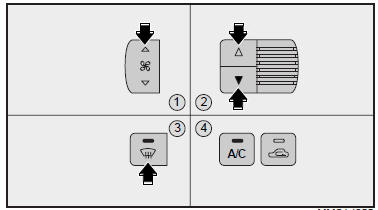

To Defog Inside Windshield
1. Select any fan speed except OFF ()
position.
2. Select desired temperature.
3. Press the defrost button ().
4. The air conditioning will be turned on according to the detected ambient temperature
and outside (fresh) air position will be selected.
