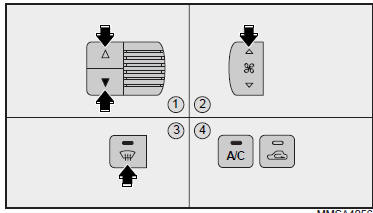

1. Set temperature to the extreme hot (25°C~32°C) position.
2. Set the fan speed to the or
position.
3. Press the defrost button ().
4. The air conditioning will be turned on according to the detected ambient temperature
and outside (fresh) air position will be selected.
If you don’t want the air conditioning or outside (fresh) air position press the corresponding button to cancel the operation.
CAUTION
Do not use defrost position during
cooling operation in extremely humid weather. The difference between the temperature
of the outside air and that of the windshield could cause the outer surface of the
windshield to fog up, causing loss of visibility. In this case, set the mode selection
knob to the
position and fan speed
control knob to the lower speed.

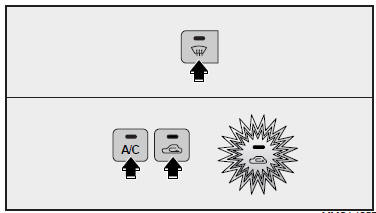

How to cancel forced air conditioning operation and outside (fresh) air position in floor-defrost and defrost position ;
1. Select the defrost position pressing defrost button ().
2. While holding the air conditioning button A/C depressed, depress the recirculated
air position button ()at least 5 times
within 3 seconds. The indicator light in the recirculated air position button (
)
will blink 3 times with 0.5 second interval.
If you want to return to the automatic air conditioning system and outside (fresh) air position, repeat the same procedure.
Follow the same procedure if you want to cancel or return to the forced outside (fresh) air position when you start the engine with recirculated air position selected manually before the engine off.
