Kia Optima: Components - Front Driveshaft. Components and Components Location - Driveshaft Assembly - Driveshaft and axle - Kia Optima TF 2011-2024 Service ManualKia Optima: Components

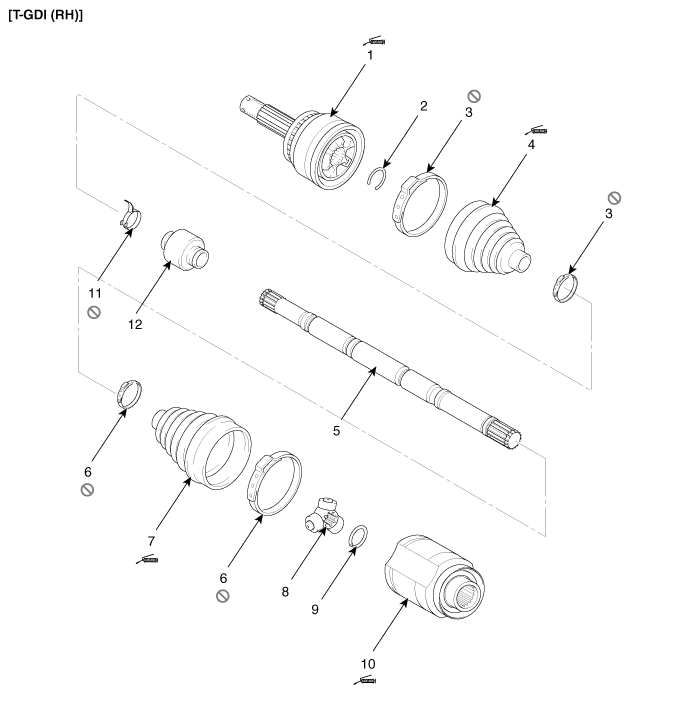

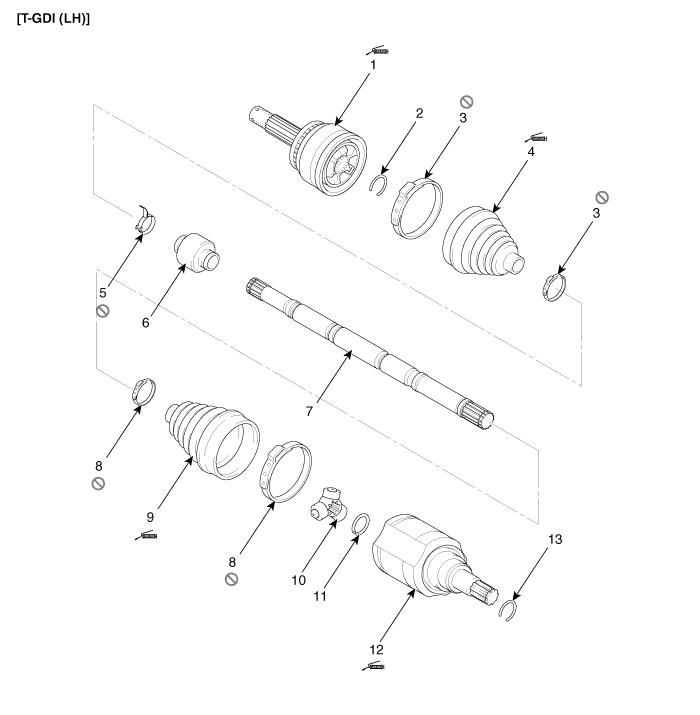

1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
10. Spider assembly
11. Snap ring
12. TJ case
13. Circlip

1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot
5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly
9. Snap ring
10. TJ case
11. Circlip

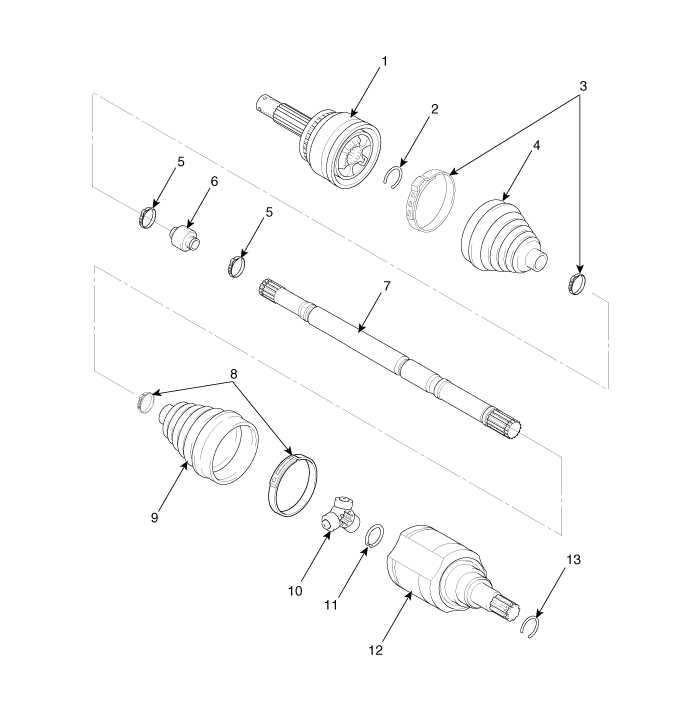

1. BJ Assembly
2. Clip
3. BJ Boot Band
4. BJ Boot
5. Dynamic Damper Band
6. Dynamic Damper
7. Shaft
8. UTJ Boot Band
9. UTJ Boot
10. Spider Assembly
11. Clip
12. UTJ Case
13.Clip

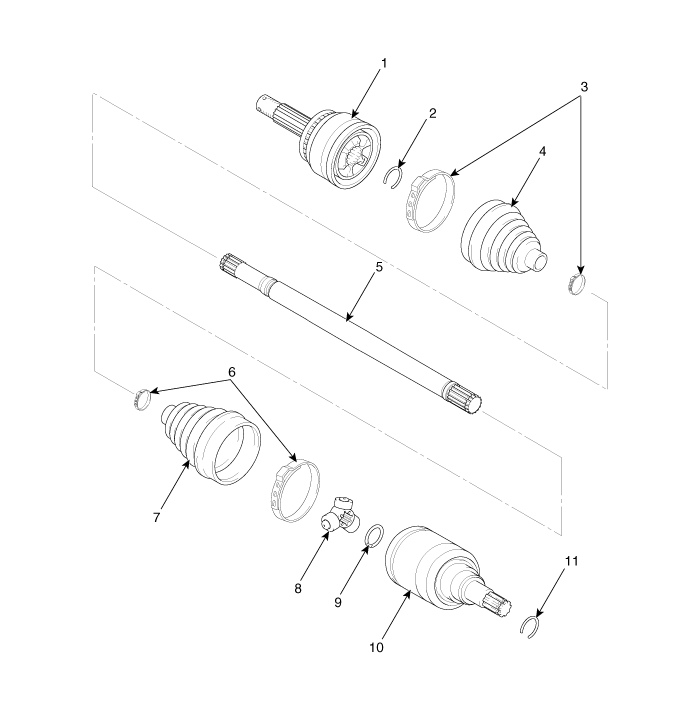

1. BJ Assembly
2. Clip
3. BJ Boot Band
4. BJ Boot
5. Shaft
6. UTJ Boot Band
7. UTJ Boot
8. Spider Assembly
9. Clip
10. UTJ Case
11. Dynamic Damper Band
12. Dynamic Damper


Component location
1. Driveshaft (LH) 2. Driveshaft (RH) 1. Driveshaft (LH) 2. Circlip 3. Inner shaft bearing bracket assembly 4. Circlip 5. Driv ...
