Kia Optima: Component location - Front Driveshaft. Components and Components Location - Driveshaft Assembly - Driveshaft and axle - Kia Optima TF 2011-2026 Service ManualKia Optima: Component location

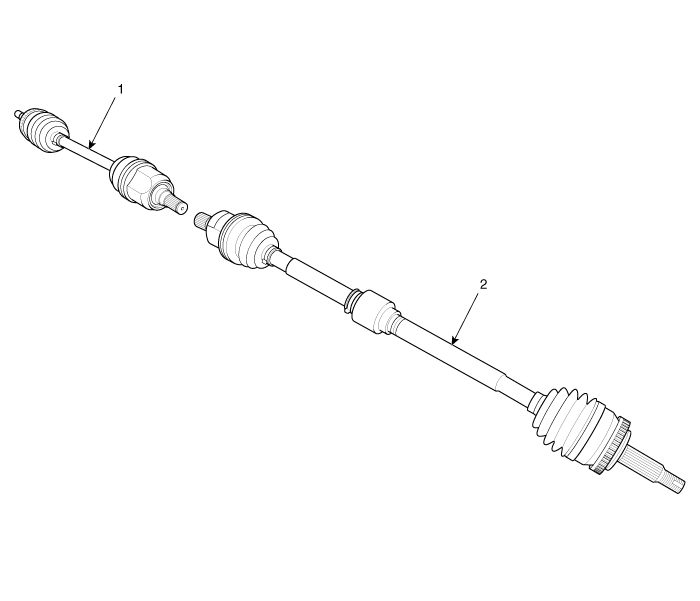

1. Driveshaft (LH)
2. Driveshaft (RH)

1. Driveshaft (LH)
2. Circlip
3. Inner shaft bearing bracket assembly
4. Circlip
5. Driveshaft (RH)


Front Driveshaft. Components and Components Location
...

Components
1. BJ assembly 2. Circlip 3. BJ boot band 4. BJ boot 5. Dynamic damper band 6. Dynamic damper 7. Shaft 8. TJ boot band 9. TJ boot 10. Spider a ...
