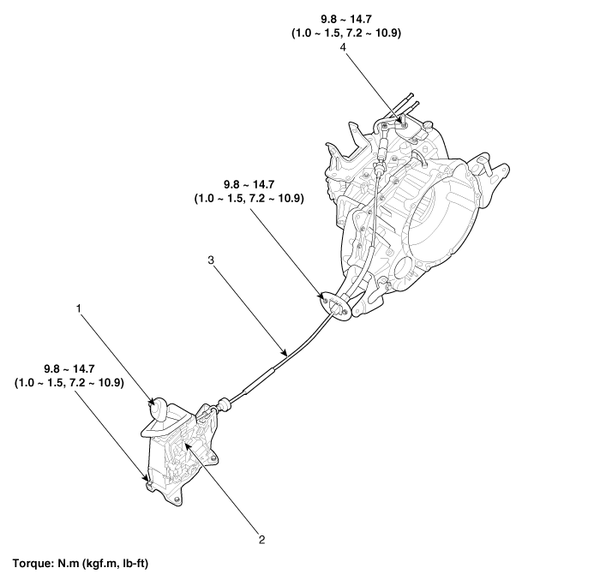

Components
1. Shift lever knob & boots assembly 2. Shift lever assembly |
3. Control cable assembly 4. Manual control lever (T/M side) |
