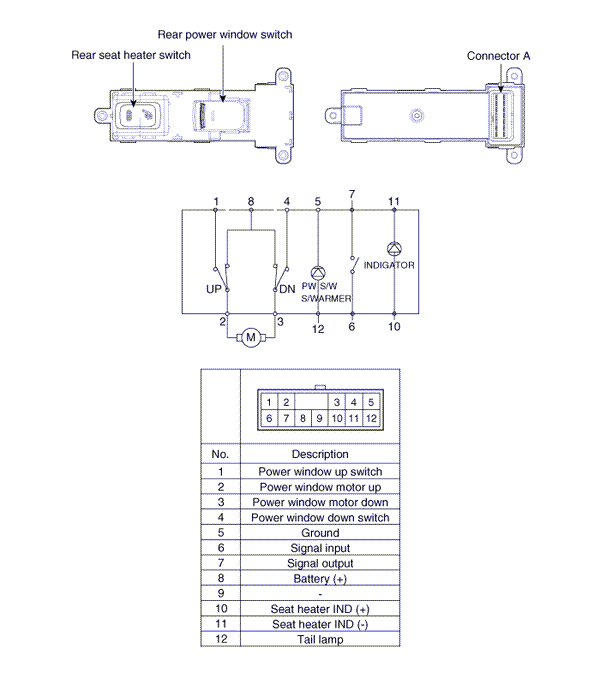

Kia Optima: Rear Power Window + Seat Heater Switch - Power Window Switch. Schematic Diagrams - Power Windows - Body Electrical System - Kia Optima TF 2011-2023 Service ManualKia Optima: Rear Power Window + Seat Heater Switch


Passenger And Rear Power Window Switch
...
