Kia Optima: Rear Body. Body Repair - Body Dimensions - Body (Interior and Exterior) - Kia Optima TF 2011-2023 Service ManualKia Optima: Rear Body. Body Repair

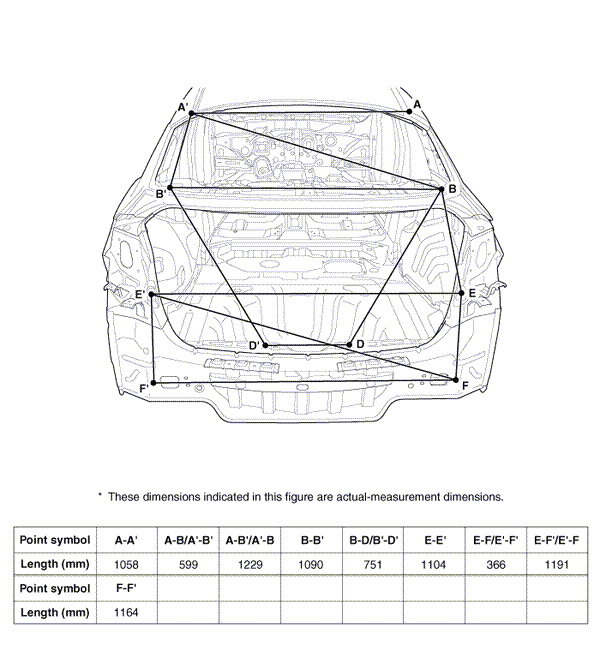

Side outer panel rear corner

Rear package tray trim mounting hole
(Ø10)
Rear transverse trim mounting hole
(Ø8.4)


Rear combination lamp mounting hole
(8.5X8.5)
Rear bumper mounting hole (11X13)




Interior D
Seat belt height adjust upper mounting hole (Ø14) Seat belt height adjust lower mounting hole (Ø14) ...
