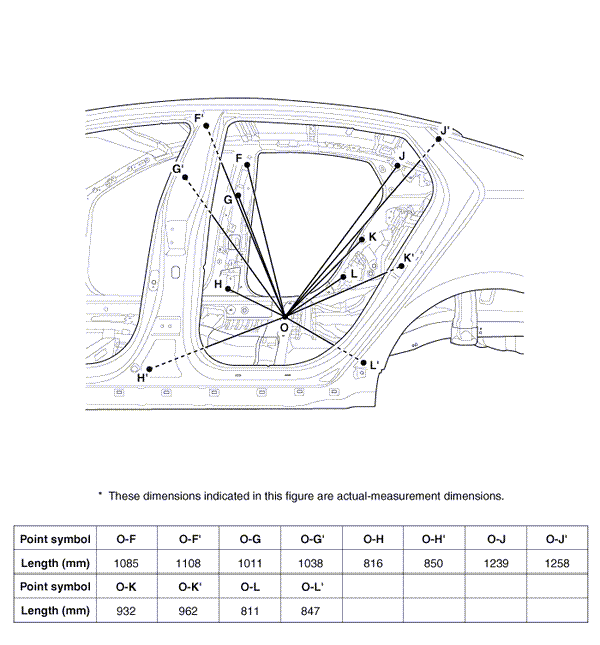

Kia Optima: Interior D - Interior. Body Repair - Body Dimensions - Body (Interior and Exterior) - Kia Optima TF 2011-2022 Service ManualKia Optima: Interior D

Seat belt height adjust upper mounting hole (Ø14)
Seat belt height adjust lower mounting hole (Ø14)
Front seat belt retractor mounting hole
(Ø12)

Rear pillar trim mounting hole (Ø8.5)

Quarter inner panel tooling hole (Ø16)

Wheel house panel tooling hole (Ø12)



Rear floor panel tooling hole (Ø15)





Interior C
Front pillar trim mounting hole (Ø12) Front pillar trim mounting hole (Ø8.4) Cowl cross ...

Rear Body. Body Repair
Side outer panel rear corner Rear package tray trim mounting hole (Ø10) Rear transverse trim mo ...
