Kia Optima: MAX A/C-Level (B, D, E) - Heating and air conditioning - Manual climate control system - Features of your vehicle - Kia Optima TF 2011-2025 Owners ManualKia Optima: MAX A/C-Level (B, D, E)

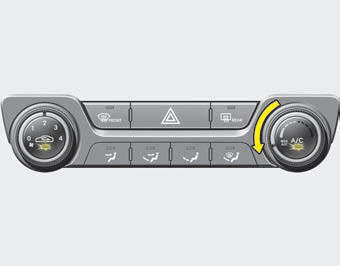

To operate the MAX A/C, turn the temperature knob to extreme left. Air flow is

To operate the MAX A/C, turn the temperature knob to extreme left. Air flow is directed toward the upper body and face. In this mode, the air conditioning and the recirculated air position will be selected automatically.

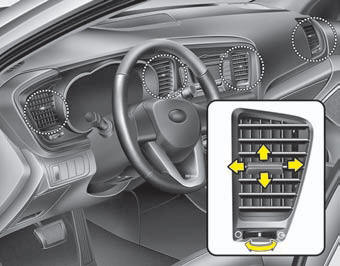

Instrument panel vents

Instrument panel vents

The outlet vents can be opened or closed separately using the thumbwheel. Also, you can adjust the direction of air delivered from these vents using the vent control lever as shown.

Mode selection
The mode selection button controls the direction of the air flow through the ventilation system Face-Level (B, C, D, E, F) Air flow is directed toward the upper body and face. Additionally, ea ...

Temperature control
The temperature control knob allows you to control the temperature of the air flowing from the ventilation system. To change the air temperature in the passenger compartment, turn the knob to th ...
