Kia Optima: Adjustment
Adjust Hood

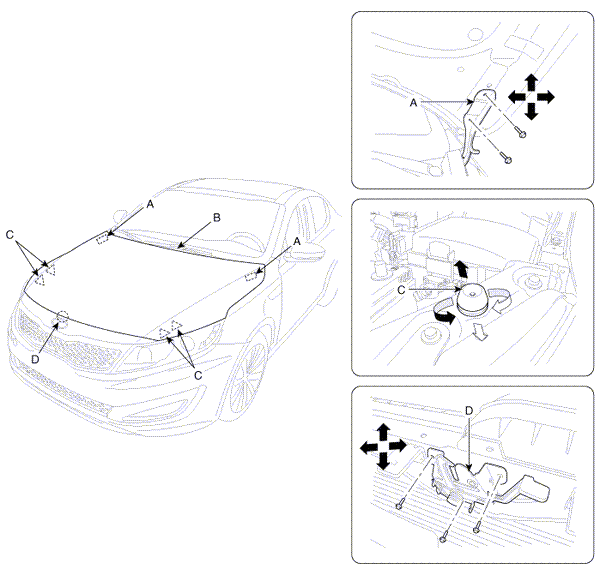

| 1. | After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up or down, or right or left. |
| 2. | Adjust the hood height by turning the hood overslam bumpers (C). |
| 3. | After loosening the hood latch
(D) mounting bolts, adjust the latch by moving it up or down, or right or
left.
|
Replacement
Hood Assembly Replacement
•
When removing and installing
the hood, an assistant is necessary.
...
