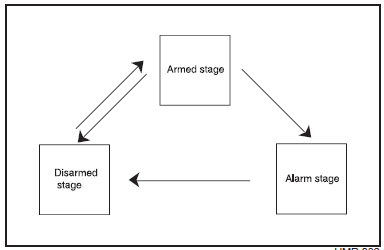

The Theft-Alarm system is armed as follows.
• After all doors, engine hood, and trunk are locked, press the “LOCK” button on the transmitter once. The hazard flasher lights will flash once when the button is pressed, then twice when the button is released. (At this time, the alarm does not sound.)
Inspection
1.
Disconnect the negative(-) battery
terminal.
2.
Remove the lighting switch of
the multi-function switch. (Refer to the multi-function switch)
3.
Wi ...
