Kia Optima: Manifold Absolute Pressure Sensor (MAPS). Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Kia Optima TF 2011-2023 Service ManualKia Optima: Manifold Absolute Pressure Sensor (MAPS). Schematic Diagrams

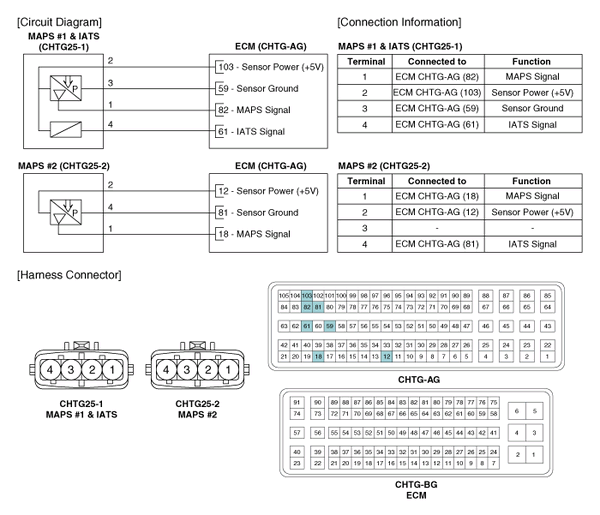

Circuit Diagram


Manifold Absolute Pressure Sensor (MAPS). Specifications
Specification Pressure [kPa (kgf/cm², psi)] Output Voltage (V) 20.0 (0.20, 2.9) 0.79 46.7 (0.47, 6.77) 1.84 ...

Manifold Absolute Pressure Sensor (MAPS). Repair procedures
...
