Kia Optima: Automatic climate control system
Type A

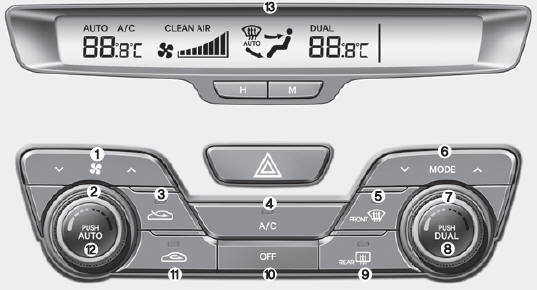

Type B
1. Fan speed control switch
2. Driver’s temperature control knob
3. Outside
air position button
4. Air conditioning button
5. Front windshield defroster
button
6. Mode selection button
7. Passenger's temperature control knob
8.
Dual temperature control selection button
9. Rear window defroster button
10.
OFF button
11. Recirculated air position button (Type A) Air intake control button
(Type B)
12. AUTO (automatic control) button
13. Climate control display
14.
Climate information screen selection button
