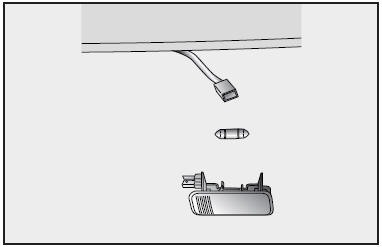

1. Remove the trunk room lamp cover using flat blade screw driver.
2. After replacement of bulb, install the cover.
TCS ON/OFF MODE
In the TCS ON mode, the indicator in the instrument cluster will not be illuminated.
The indicator will illuminate when the ignition key is turned to the “ON” position,
but should go off after 3 se ...
Output Speed Sensor. Specifications
Specifications
▷ Type: Hall effect sensor
Operation condition [°C(°F)]
((-)40~150)) -40~302
Air gap(mm)in.
(0.55~1) 0.0217~0.0394
...
Installation
Smart Key Unit
1.
Install the smart key unit.
2.
Install the smart key unit mounting
nuts and bolts and connector.
3.
Install the glove box housing.
...
