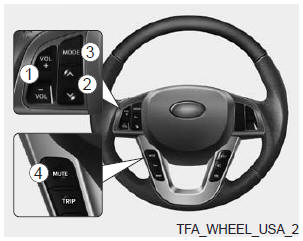

The steering wheel may incorporate audio control buttons.
CAUTION
Do not operate audio remote control buttons simultaneously.
VOLUME ( +/- ) (1)
SEEK/PRESET ( /) (2)
The SEEK/PRESET button has different functions based on the system mode. For the following functions the button should be pressed for 0.8 seconds or more.
RADIO mode
It will function as the AUTO SEEK select button.
CD/USB/iPod® mode
It will function as the FF/REW button
If the SEEK/PRESET button is pressed for less than 0.8 seconds, it will work as follows in each mode.
RADIO mode
It will function as the PRESET STATION buttons.
CD/USB/iPod® mode
It will function as TRACK UP/DOWN button.
MODE (3)
Press the button to change audio source.
FM(1~2)➟AM➟SAT(1~3)➟CD➟USB AUX(iPod®)➟FM...
In addition to mode change, Power on/off can be made by pressing this button when the ignition switch is on ACC or ON.
- Power ON : Press the button when the audio is off
- Power OFF : Press the button for more than 0.8seconds when the audio is on.
MUTE (4, if equipped)
Detailed information for audio control buttons are described in the following pages in this section.
