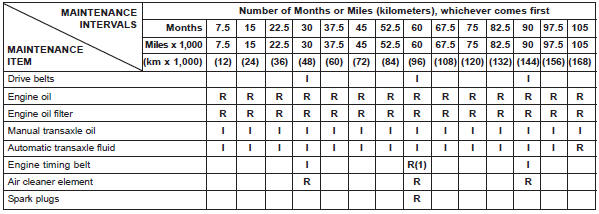

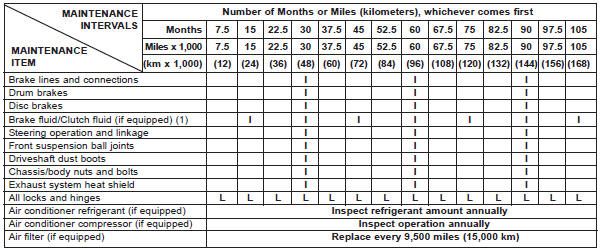

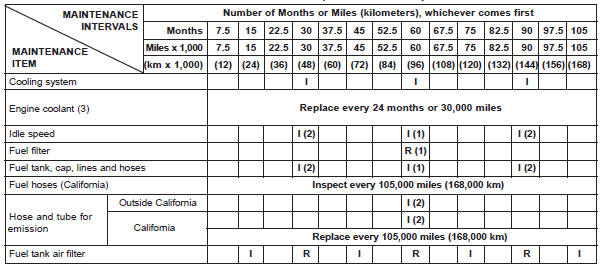

Kia Optima: Schedule 1 - Normal Maintenance


I: Inspect and, if necessary, adjust, correct, clean or replace.
R: Replace or change.
Owner’s Responsibility
