Kia Optima: CVVT Oil Control Valve (OCV). Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Kia Optima TF 2011-2025 Service ManualKia Optima: CVVT Oil Control Valve (OCV). Schematic Diagrams

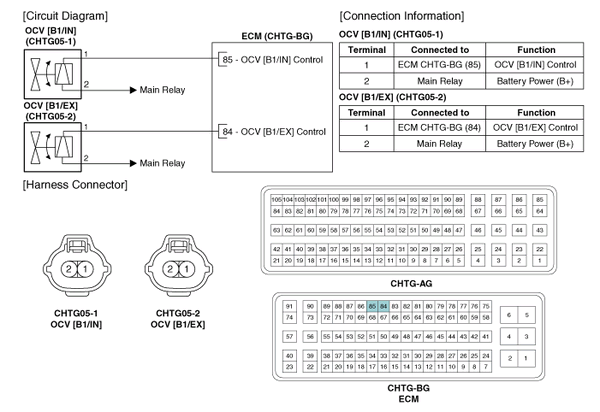

Circuit Diagram
