Kia Optima: Power Window Relay. Repair procedures
Inspection
Diagnosis With GDS| 1. | It will be able to diagnose defects of power window with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis. |
| 2. | Select model and "BCM". |
| 3. | Select the "SJB" to check. |

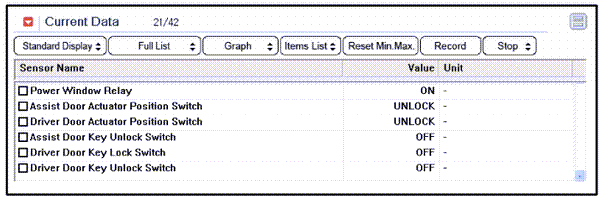

| 4. | Select "Current data", if you
will check current data of power window system. It provides input/output
status of SJB.
|

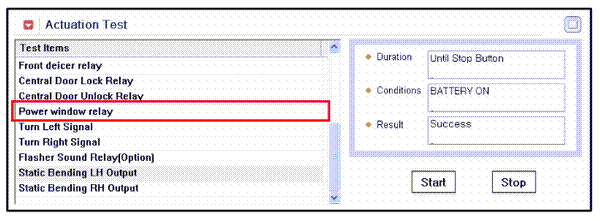

| 5. | If you will check the power door
lock operation forcefully, select "Actuation test".
|
Power Window Switch. Repair procedures
Inspection
Power Window Main Switch Inspection
1.
Disconnect the negative (-) battery
terminal.
2.
Remove the front door trim panel.
(Refer to the BD group - "Fro ...
See also:
Removal
Shift Lever Assembly Replacement
1.
Remove the center console assembly.
(Refer to "Interior(console)" in BD group.)
2.
Disconnect sports mode conn ...
Description and Operation
Description
System OverviewThe System offers the following features:
-
Human machine interface through
a 1-stage button, for terminal switching and engine start.
-
Co ...
Diagnosis procedure by using diagnostic device
As manual for diagnosis methods by using diagnosis device, the main contents are
as follows:
1.
Connect self-diagnosis connector(16pins)
located in the lower of driver side crash pad to ...
