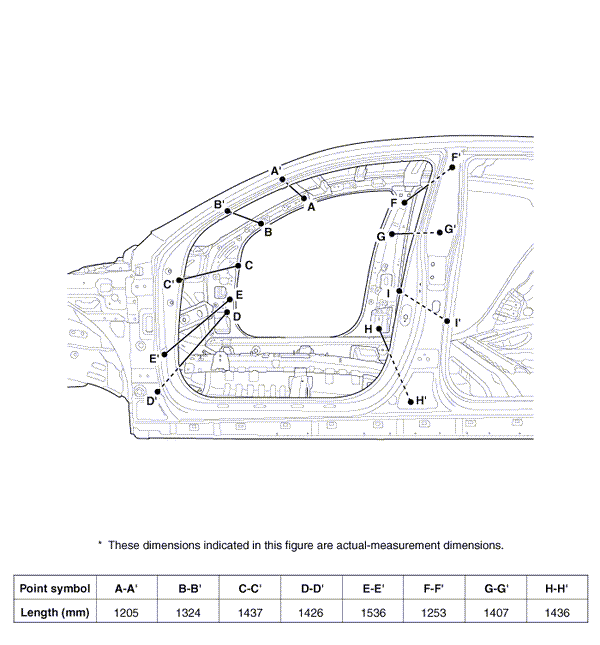

Kia Optima: Interior A - Interior. Body Repair - Body Dimensions - Body (Interior and Exterior) - Kia Optima TF 2011-2024 Service ManualKia Optima: Interior A

Front pillar trim mounting hole (Ø12)

Front pillar trim mounting hole (Ø8.4)

Cowl crossbar mounting hole (Ø8.5)

Cowl side trim mounting hole (8.4X8.4)

Front door checker mounting hole
(Ø13)
Seat belt height adjust upper mounting hole (Ø14.5)


Seat belt height adjust lower mounting hole (Ø14)
Front seat belt retractor mounting hole
(Ø12)
