Kia Optima: Inspection
| 1. | Disconnect the ignition switch
connector (A) and key warning switch connector (B) from the steering column.
|

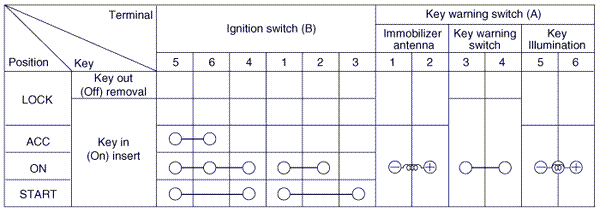

| 2. | Check for continuity between the terminals. |
| 3. | If continuity is not specified,
replace the switch.
|
Installation
1.
Install the key lock cylinder.
2.
Install the key warning switch
and key Illumination.
3.
Install the key warning/immobilizer
connector.
...
