Kia Optima: Inspection
| 1. | The rear glass defogger switch inputs can be checked using the GDS. |
| 2. | To check the input value of rear glass defogger switch, select option "Body Control Module". |

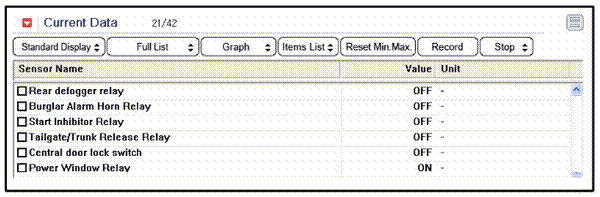

| 3. | To consult the present input/output
value of BCM, "Current DATA". It provides information of BCM input/output
conditions of smart junction box.
|

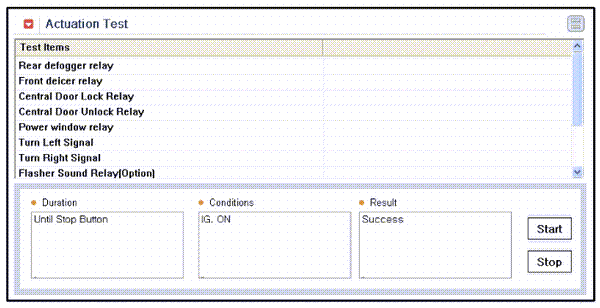

| 4. | To check the input value of rear
glass defogger switch in force mode, select option "Actuation Test of smart
junction box".
|
