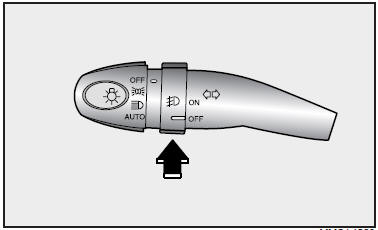

To turn on the front fog lights, place the switch in the “ON” position. They will come on when the headlight switch is in the first or second position.
