The electric day/night rearview mirror automatically controls the glare from the headlights of the car behind you. Adjust the rearview mirror to the desired position.

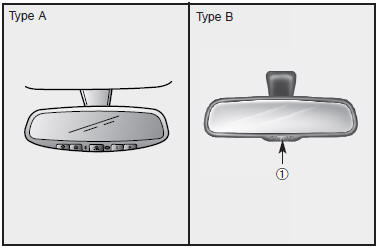

Type A
Press the “O” button to turn the automaticdimming function off. The mirror indicator light will turn off.
Press the “I” button to turn the automaticdimming function on, The mirror indicator light will illuminate.
Type B
When the ignition switch is ON, the automaticdimming function will turn on automatically.
Press the ON/OFF button (➀) to turn the automatic- dimming function off. The mirror indicator light will turn off.
Press the ON/OFF button (➀) once again to turn the automatic- dimming function on. The mirror indicator light will illuminate.
CAUTION
Do not place objects in the rear seat or cargo area which would interfere with your vision out the rear window.
✽ NOTICE
When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirror housing.
