Kia Optima: Cool box
You can keep beverage cans or other items cool using the open/close lever of the vent installed in the multi box.
1. Turn on the fan and set the temperature control to the desired position.

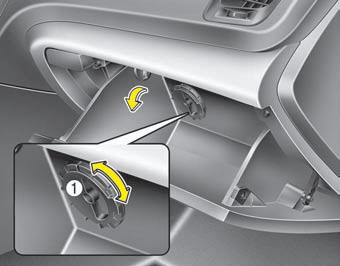

2. Turn the open/close lever of the vent installed in the multi box to the open position.
3. When the cool box is not used, turn the lever to its closed position.
For improving the effectiveness of the cool box, do as follow;
1. Set the fan speed to the highest (extreme right) position.
✽ NOTICE
If some items in the cool box block the vent, the cooling effectiveness of the cool box is reduced.
WARNING
Do not put the perishable food in the cool box because it may not be able to maintain the necessary consistent temperature to keep the food fresh.
