Kia Optima: Components(Without EPB) - Rear Disc Brake. Components and Components Location - Brake System - Brake System - Kia Optima TF 2011-2024 Service ManualKia Optima: Components(Without EPB)

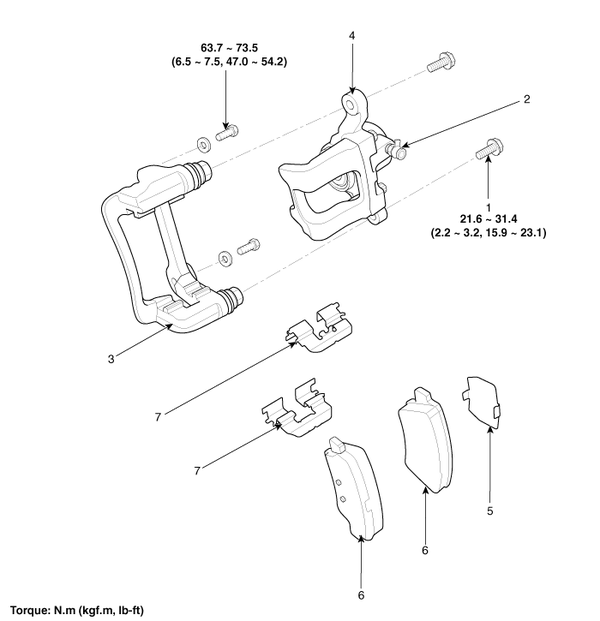

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body
5. Inner pad shim
6. Brake pad
7. Pad retainer

Rear Disc Brake. Components and Components Location
...

Components (With EPB)
1. Guide rod bolt 2. Bleed screw 3. Caliper carrier 4. Caliper body 5. Brake pad 6. Pad retainer ...
