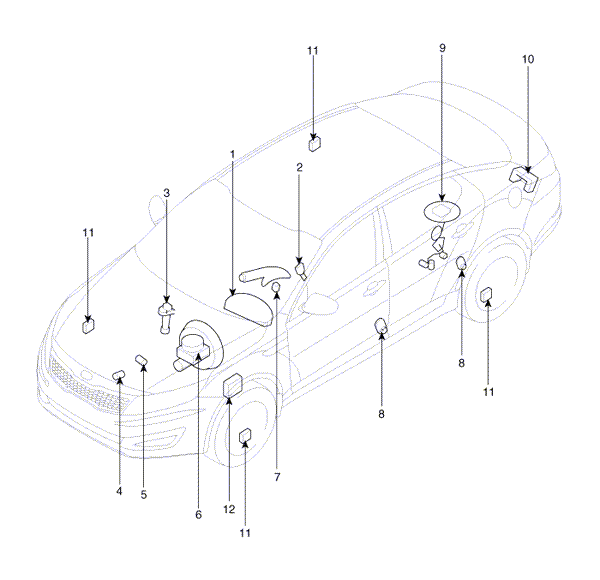

Component Location

1. Instrument cluster assembly
2. Seat belt switch
3. Vehicle speed sensor
4. Engine coolant temperature sender
5. Oil pressure switch
6. Brake fluid level warning switch
7. Parking brake switch
8. Door switch
9. Fuel gauge sender
10. Trunk lid open switch
11. Wheel speed sensor
12. ABS ECU


Indicators And Gauges
...

Instrument Cluster. Components and Components Location
Components ...
