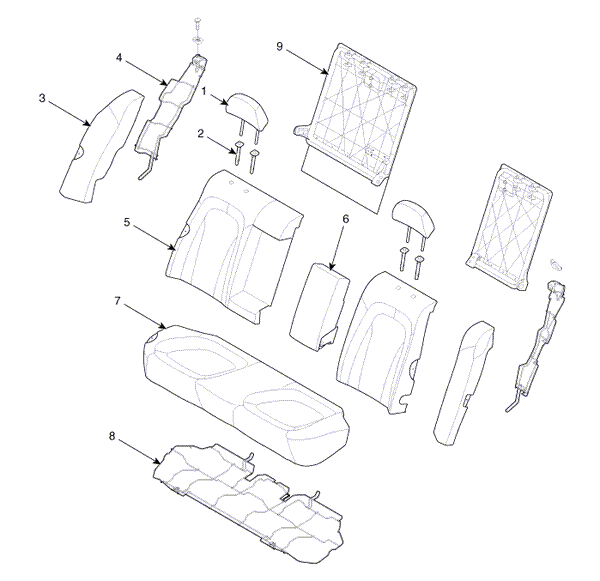

Kia Optima: Components - 2 [ Seat folding ]
|
1. Headrest 2. Headrest guide 3. Rear side cover 4. Rear side frame assembly 5. Rear seat back cover |
6. Rear back armrest 7. Rear seat cushion cover 8. Rear seat cushion frame assembly 9. Rear seat back frame assembly |
