Kia Optima: Camshaft Position Sensor (CMPS). Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Kia Optima TF 2011-2022 Service ManualKia Optima: Camshaft Position Sensor (CMPS). Schematic Diagrams

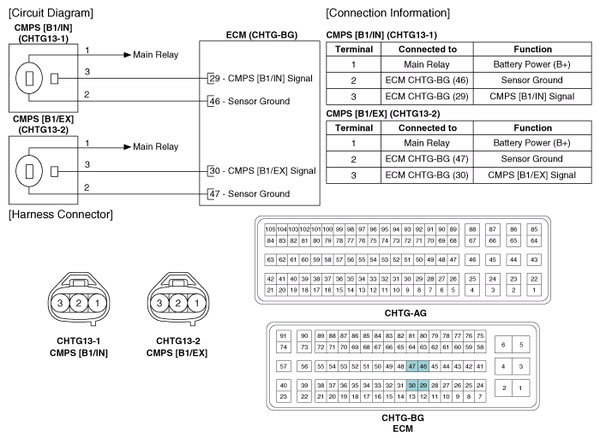

Circuit Diagram
