Kia Optima: Brake Pedal. Components and Components Location - Brake System - Brake System - Kia Optima TF 2011-2023 Service ManualKia Optima: Brake Pedal. Components and Components Location

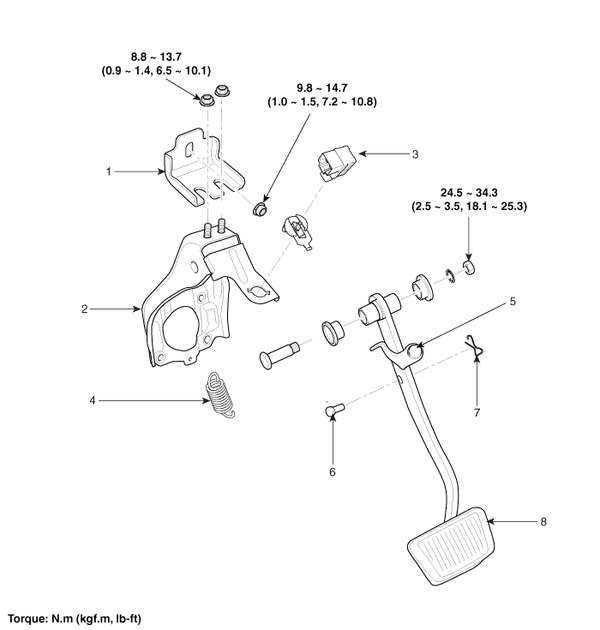

Components

1. Cowl bracket
2. Brake pedal member assembly
3. Stop lamp switch
4. Return spring
5. Brake pedal stopper
6. Clevis pin
7. Snap pin
8. Brake pedal


Installation
1. Installation is the reverse of removal. Use a new washer (A) whenever installing. ...

Brake Pedal. Repair procedures
...
