Kia Optima: Air conditioning

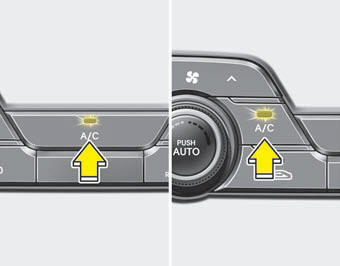

Press the A/C button to turn the air conditioning system on (indicator light will illuminate).
Press the button again to turn the air conditioning system off.
Fan speed control
The fan speed can be set to the desired speed by pressing the fan speed control
switch.
To change the fan speed press the
part of the switch for higher speed
or press the part of the switch ...
OFF mode
Press the OFF button to turn off the air climate control system. However you
can still operate the mode and air intake buttons as long as the ignition switch
is in the ON position. ...
