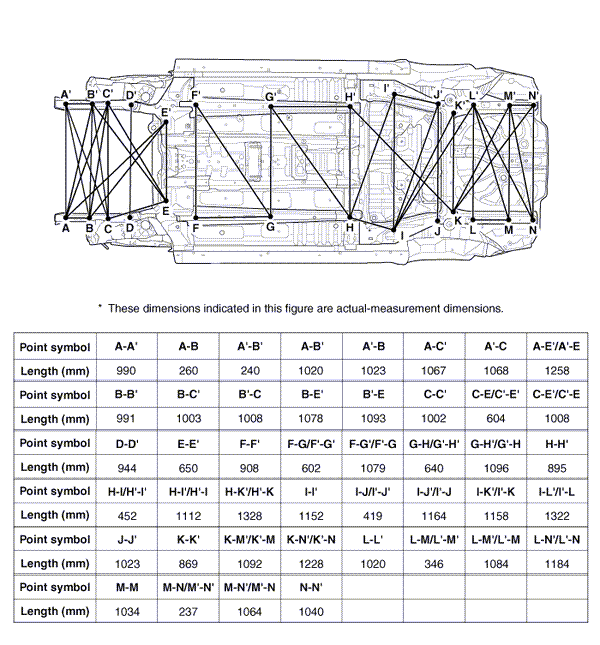

Kia Optima: Actual-Measurement Dimensions
|
|
|
|
|
Front side member tooling hole (Ø25) |
Side cover mounting hole (Ø9) |
Side cover mounting hole (Ø9) |
|
|
|
|
|
Front subframe mounting bolt |
Front subframe mounting hole (Ø16.5) |
Front side rear member tooling hole (Ø25) |
|
|
|
|
|
Front side rear member tooling hole (Ø14.5) |
Center floor side panel tooling hole (Ø19.5) |
Rear trailing arm mounting hole (Ø19) |
|
|
|
|
|
Rear subframe mounting hole (Ø16) |
Rear subframe mounting hole (Ø16) |
Fuel filler-neck assembly bracket mounting hole (Ø8) |
|
|
|
|
|
Rear floor side member tooling hole (Ø10) |
Rear floor side member tooling hole (Ø20) |
|
Projected Dimensions
Front side member tooling hole (Ø25)
Side cover mounting hole (Ø9)
Side cover mounting ...
