Kia Optima: Rear Shock Absorber. Components and Components Location - Rear Suspension System - Suspension System - Kia Optima TF 2011-2019 Service ManualKia Optima: Rear Shock Absorber. Components and Components Location

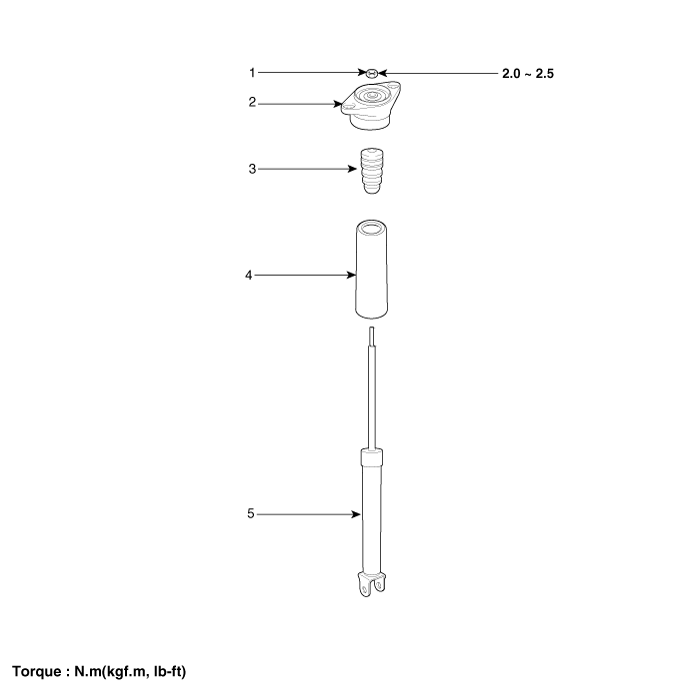

Components

1. Self locking nut
2. Bracket assembly
3. Bumper rubber
4. Dust cover
5. Shock absorber




Components
1. Sub frame 2. Rear lower arm 3. Trailing arm 4. Rear shock absorber 5. Assist arm 6. Rear upper arm 7. Rear stabilizer bar ...

Rear Shock Absorber. Repair procedures
...
