Kia Optima: Components - Components and Components Location - Rear Suspension System - Suspension System - Kia Optima TF 2011-2019 Service ManualKia Optima: Components

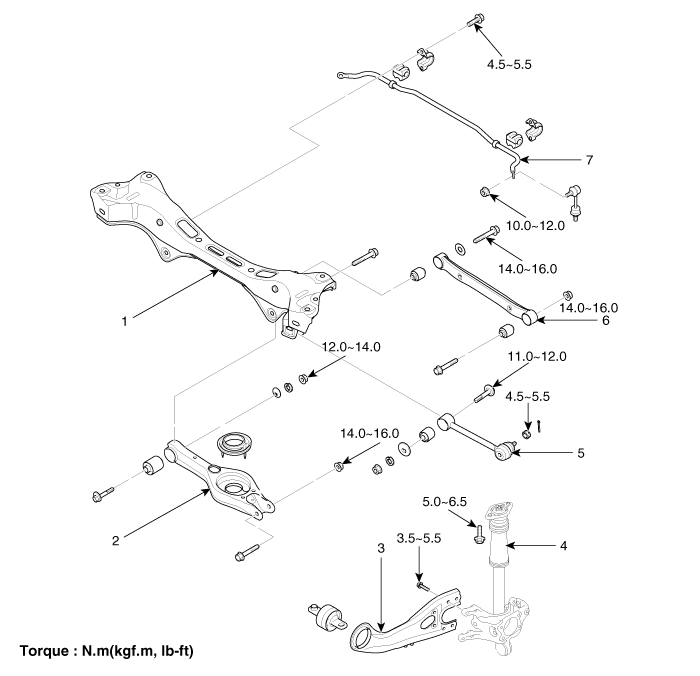

1. Sub frame
2. Rear lower arm
3. Trailing arm
4. Rear shock absorber
5. Assist arm
6. Rear upper arm
7. Rear stabilizer bar




Components Location
1. Sub frame 2. Assist arm 3. Trailing arm 4. Rear disc 5. Rear upper arm 6. Rear shock absorber 7. Coil spring ...

Rear Shock Absorber. Components and Components Location
Components 1. Self locking nut 2. Bracket assembly 3. Bumper rubber 4. Dust cover 5. Shock absorber ...
