Kia Optima: Instrument cluster - Features of your vehicle - Kia Optima TF 2011-2019 Owners ManualKia Optima: Instrument cluster

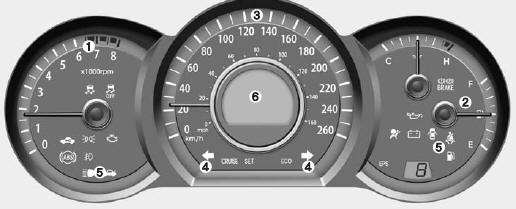

Type A

Type A

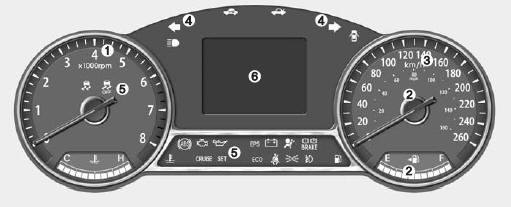

Type B

Type B

1. Tachometer
2. Fuel gauge
3. Speedometer
4. Turn signal indicators
5.Warning and indicator lights
6. Odometer/Trip computer*

* : if equipped

* The actual cluster in the vehicle may differ from the illustration. For more details refer to the "Gauges" in the next pages.
