Kia Optima: Crankshaft Position Sensor (CKPS). Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Kia Optima TF 2011-2021 Service ManualKia Optima: Crankshaft Position Sensor (CKPS). Schematic Diagrams

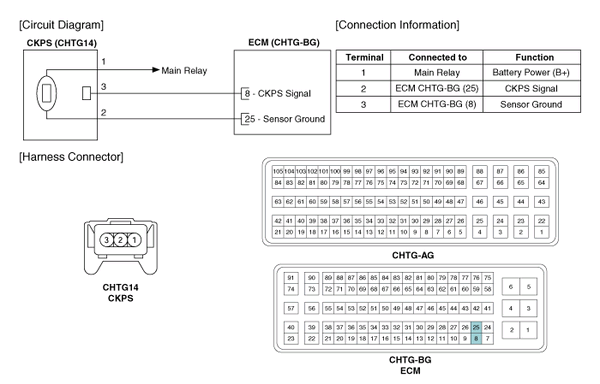

Circuit Diagram
