Kia Optima: Connector Terminal Function - Heated Steering wheel. Schematic Diagrams - Steering wheel - Steering System - Kia Optima TF 2011-2019 Service ManualKia Optima: Connector Terminal Function

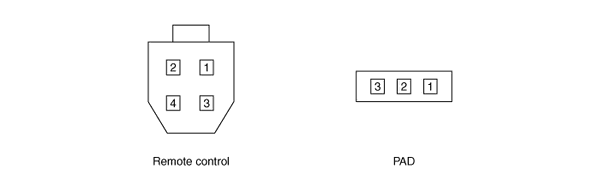

1. Connector terminal

2. Terminal Function
Housing
Pin
Function
Wire color
Pad
1
GND
Yellow
2
NTC+
Red/Black
3
HEATER
Back / Yellow
Remote
control
1
Ignition
Red
2
Ground(-)
Back
3
LED
Green
4
Switch
White


Heated Steering wheel. Schematic Diagrams
...

System Circuit Diagram
...
