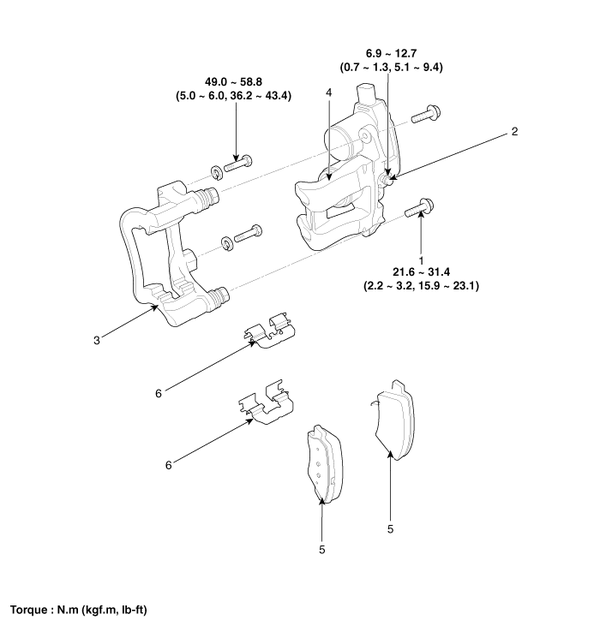

Kia Optima: Components (With EPB) - Rear Disc Brake. Components and Components Location - Brake System - Brake System - Kia Optima TF 2011-2021 Service ManualKia Optima: Components (With EPB)

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body
5. Brake pad
6. Pad retainer


Components(Without EPB)
1. Guide rod bolt 2. Bleed screw 3. Caliper carrier 4. Caliper body 5. Inner pad shim 6. Brake pad 7. Pad retainer ...
