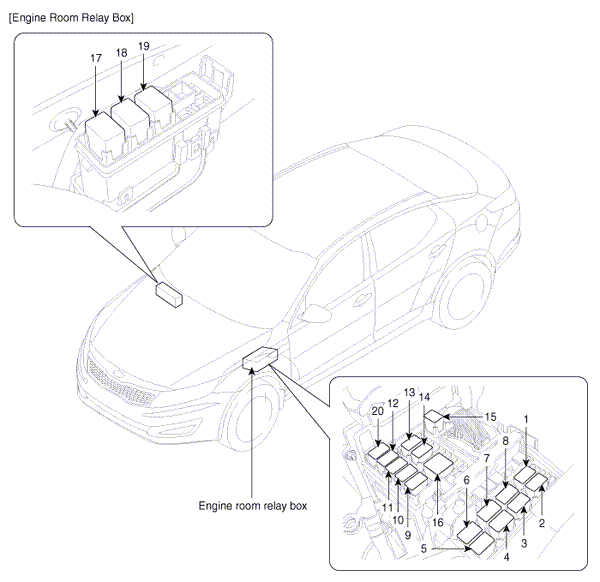

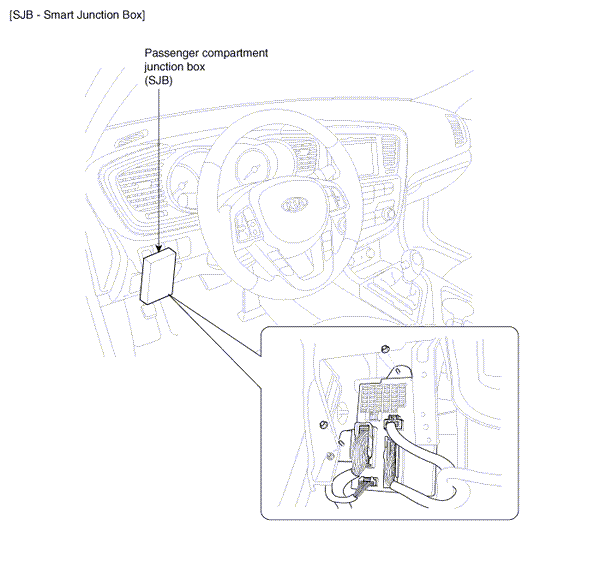

Component Location

1. Deicer relay
2. Not used
3. HAC relay
4. Rain sensor relay
5. Blower relay
6. B/Horn relay
7. Wiper relay
8. Not used
9. Not used
10. Start relay
11. C/Fan (low) relay
12. C/Fan (hi) relay
13. Fuel pump relay
14. Horn relay
15. Rear defogger relay
16. Engine control relay
17. PDM (ACC)
18. PDM (IG1)
19. PDM (IG2)
20. Head lamp washer
