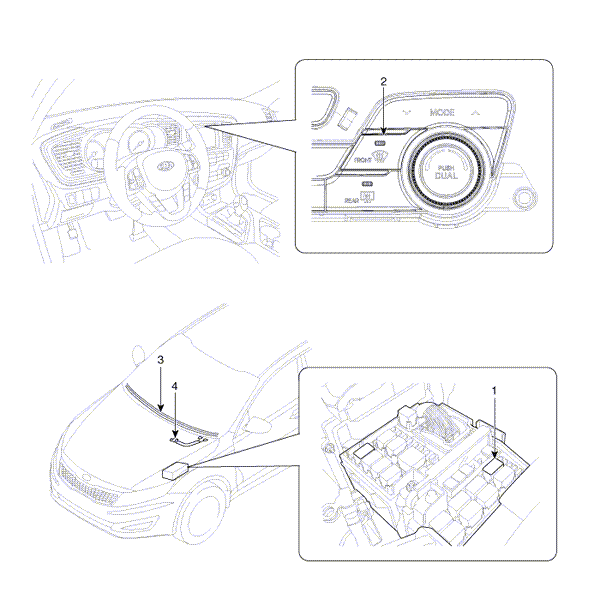

Component Location

1. Windshield deicer relay (Built-in engine room relay box)
2. Windshield deicer switch
3. Windshield deicer
4. Deicer connector


Windshield Deicer
...

Description and Operation
Description Windshield deicer system prevent windshield wiper from freezing in the winter season. It consists of deicer in the lower part of windshield, switch and relay. Body control module rece ...
