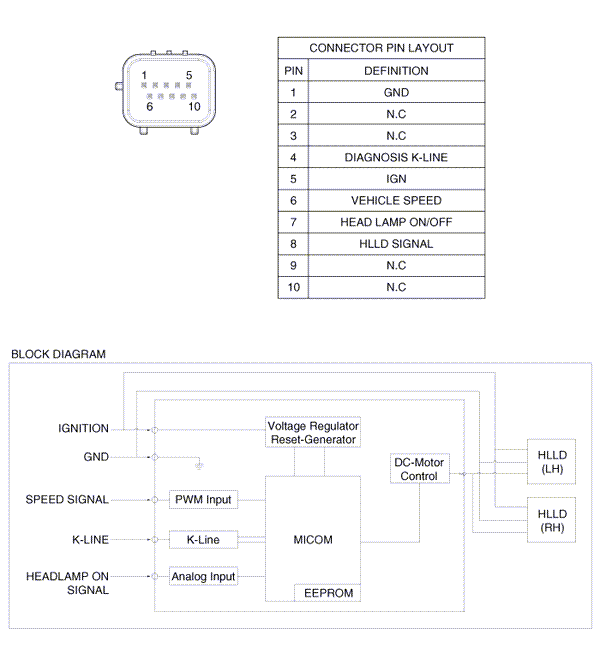

Kia Optima: Auto Head Lamp Leveling Unit. Schematic Diagrams

Replacement

1. Disconnect the negative (-) battery terminal. 2. Remove the head lamp assembly. (Refer to the head lamp) 3. Remove the head lamp leveling ac ...

Auto Head Lamp Leveling Unit. Description and Operation

...

See also:

Audio Remote Control. Schematic Diagrams
Circuit Diagram ...

Components
1. Duct Seal 2. Duct Case 3. Inlet Door 4. Intake Actuator 5. Inlet Duct Case (A) 6. Climate Control Air Filter 7. Cluster Ionizer 8. Climate Control Air Fi ...

Inspection
1. Ignition "ON" 2. Manually operate the control switch and measure the voltage of blower motor. 3. Select the control switch to raise volta ...
