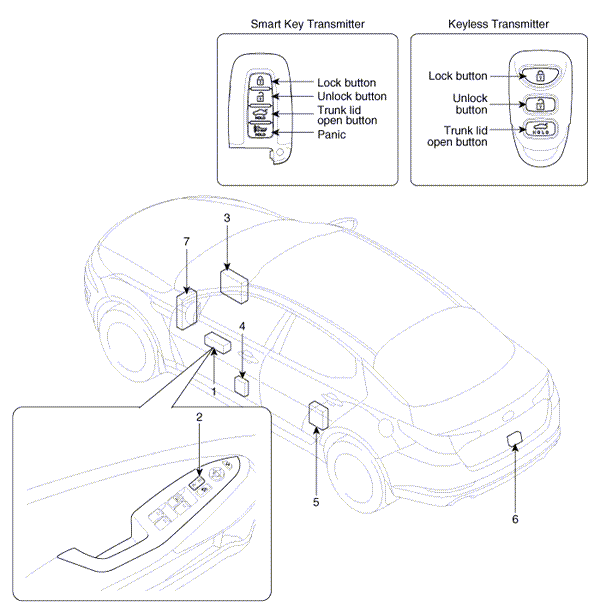

Component Location

1. Driver power window switch
2. Door lock switch
3. BCM (Body Control Module)
4. Front door lock actuator
5. Rear door lock actuator
6. Trunk lid open actuator
7. SJB (Smart Junction Box)
※ Door lock / Door unlock / Trunk lid open relay
