Kia Optima: Components and Components Location

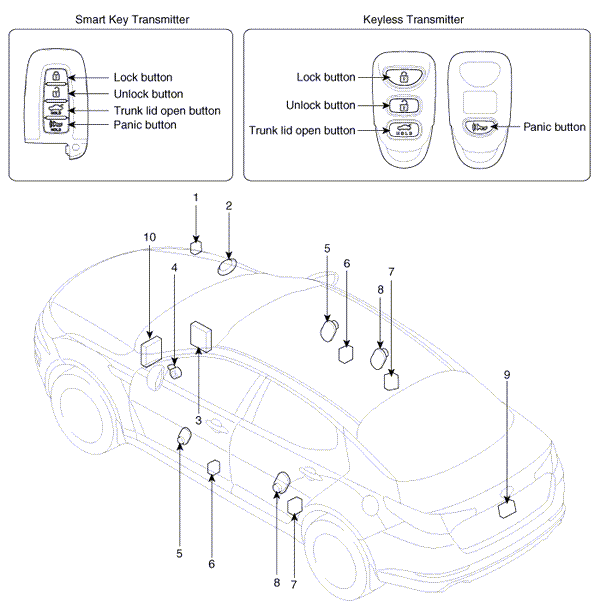

Component Location
|
1. Hood switch 2. Burglar horn 3. BCM and RF antenna 4. Key warning switch 5. Front door switch |
6. Front door lock actuator & switch 7. Rear door lock actuator & switch 8. Rear door switch 9. Trunk lid open switch |
Specifications
Specification
Item
Description
Power source
3V
Operating temperature
-20°C ~ +60°C
RF Modulation
...
