Kia Optima: TPMS Receiver. Schematic Diagrams - Tire Pressure Monitoring System - Suspension System - Kia Optima TF 2011-2021 Service ManualKia Optima: TPMS Receiver. Schematic Diagrams

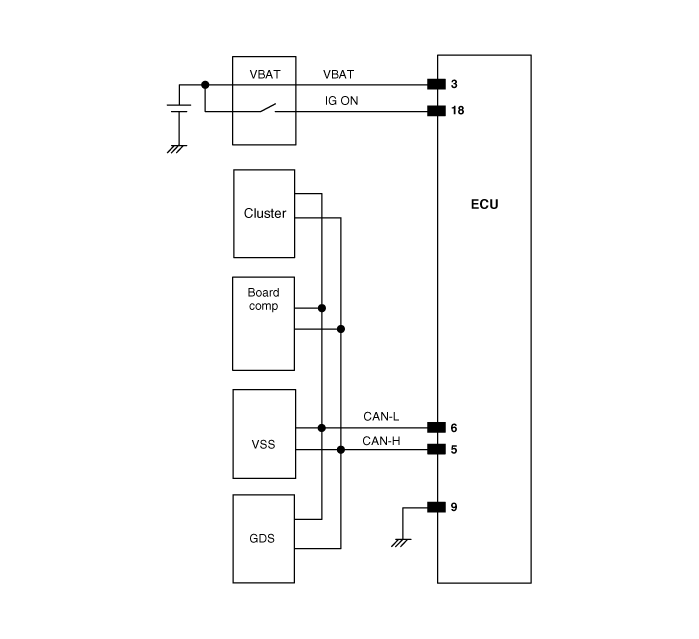

Circuit Diagram

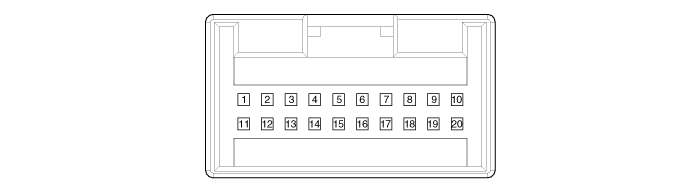

Connector pin number

Pin NO.
Discription
Remark
1
-

2
-

3
ECU battery terminal

4
-

5
CAN_High

6
CAN_Low

7
-

8
-

9
Ground

10
-

11
-

12
-

13
-

14
-

15
-

16
-

17
-

18
Ignition ON

19
-

20
-
