Kia Optima: Panoramaroof. Components and Components Location - Exterior - Body (Interior and Exterior) - Kia Optima TF 2011-2021 Service ManualKia Optima: Panoramaroof. Components and Components Location

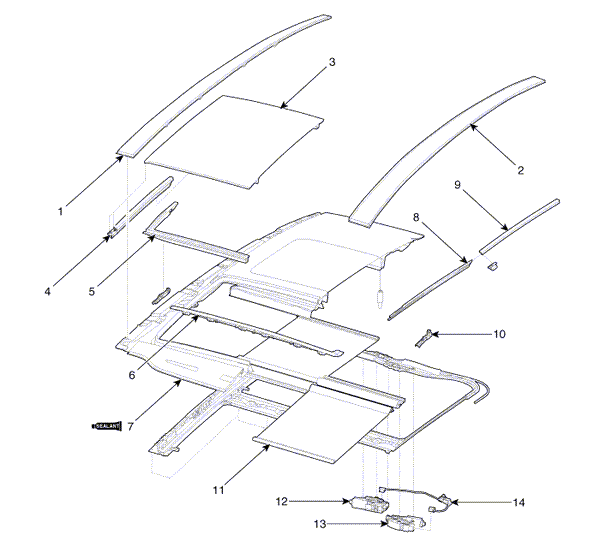

Components

1. Roof molding [RH]
2. Roof molding [LH]
3. Movable glass
4. Cover [RH]
5. Wind deflector assembly
6. Front cover assembly
7. Panoramaroof frame assembly
8. Cover [LH]
9. Shield cover
10. Wind deflector bar link
11. Roller blind assembly
12. Movable glass motor assembly
13. Roller blind motor assembly
14. Harness assembly
