Kia Optima: Components and Components Location - Audio - Body Electrical System - Kia Optima TF 2011-2019 Service ManualKia Optima: Components and Components Location

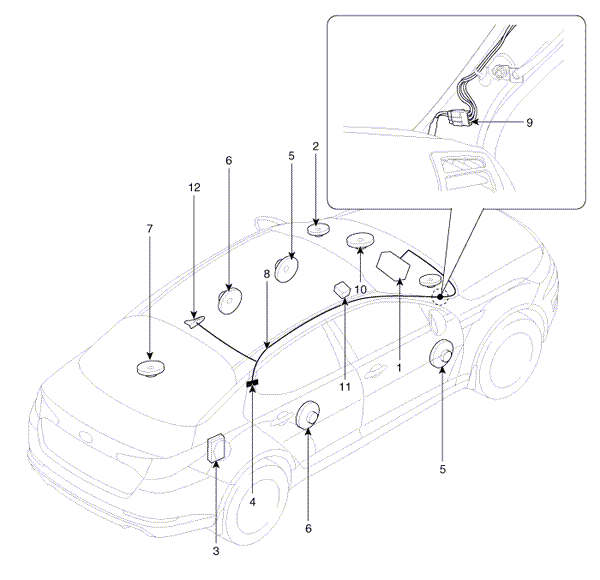

Component Location

1. Audio unit
2. Midrange speaker
3. External amplifier
4. Glass antenna (AM/FM)
5. Front door speaker
6. Rear door speaker
7. Woofer speaker
8. Antenna feeder cable
9. Feeder cable joint connector
10. Center speaker
11. Multimedia jack
12. Roof antenna (SDARS)


Specifications
Specification Audio Item Specification Model RADIO+CD+MP3+B/T+SDARS (PA710S) Bristol Audio BA900 Bristol Audio BA950 (USA Only) ...
