Kia Optima: Audio Unit. Components and Components Location - Audio - Body Electrical System - Kia Optima TF 2011-2018 Service ManualKia Optima: Audio Unit. Components and Components Location

Components


Components and Components Location

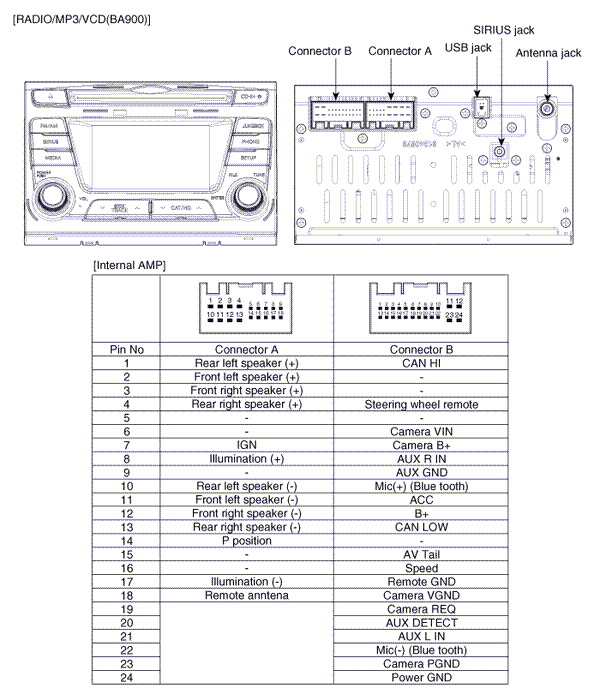

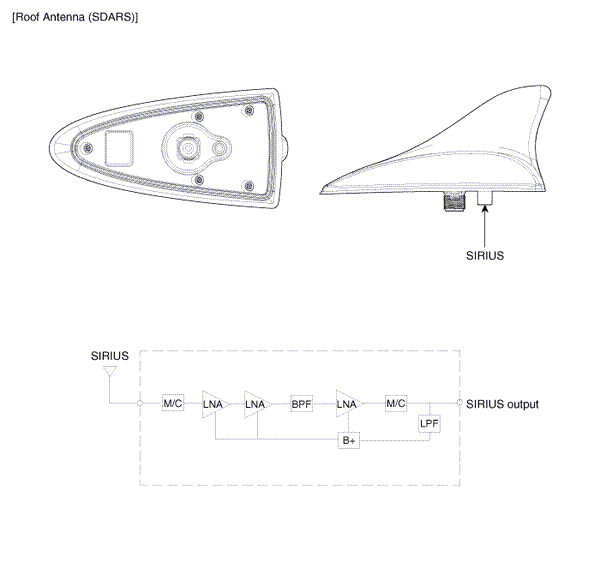

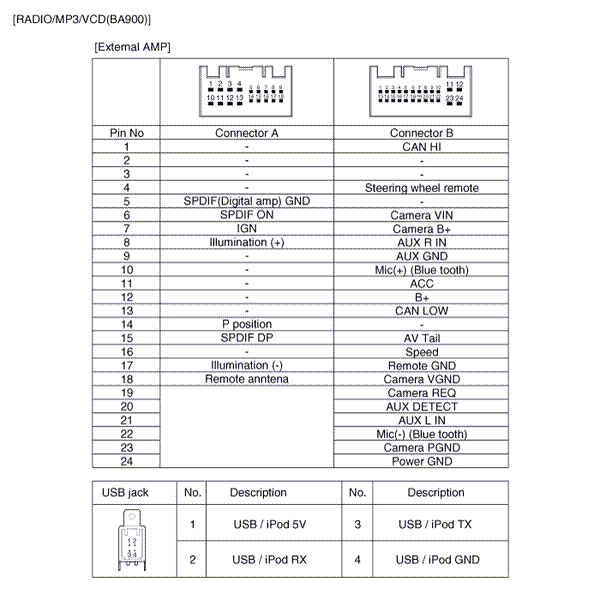

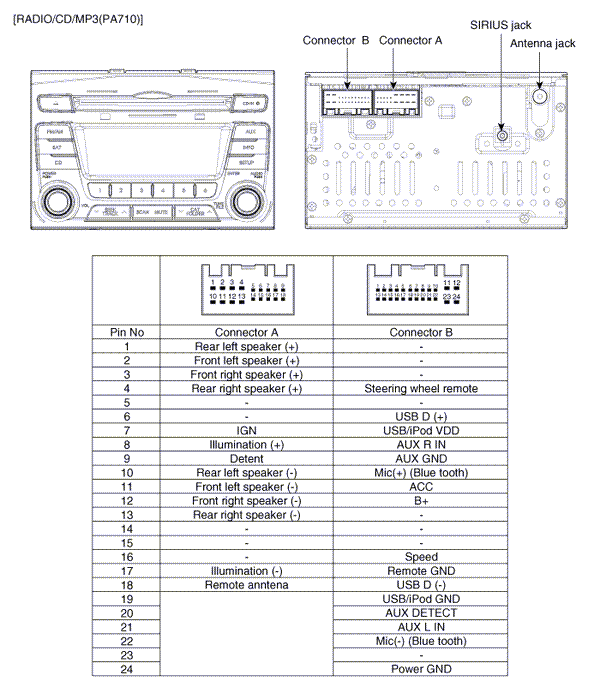

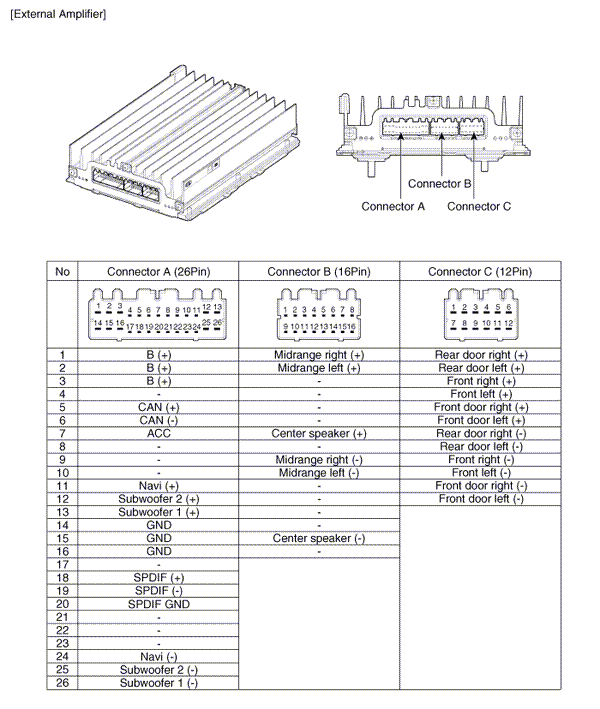

Component Location 1. Audio unit 2. Midrange speaker 3. External amplifier 4. Glass antenna (AM/FM) 5. Front door speaker 6. Rear door speaker 7. Woofer spe ...
