Kia Optima: To defog inside windshield
1. Set the mode selection switch to the
or
position.
When you select or
position, the system automatically
turns on the outside (fresh) air mode.
2. Set the temperature control knob to the desired position.
3. Set the fan speed control knob to any desired speed except “0”.
For maximum defogging, set the fan speed control knob to the “3” or “4” position.
To defrost outside windshield

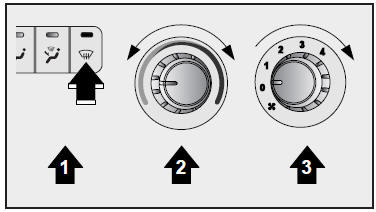

1. Set the mode selection switch to the
position.
When you select position, the system
automatically turns on the outside (fresh) air mode.
2. Set the temperature control knob to the extreme ...
