Kia Optima: Components (2) - Parking Brake Assembly. Components and Components Location - Parking Brake System - Brake System - Kia Optima TF 2011-2019 Service ManualKia Optima: Components (2)

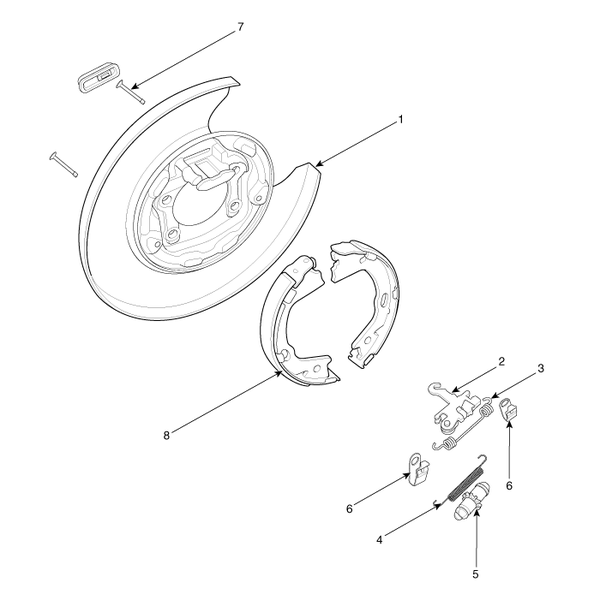

1. Backing plate
2. Operating lever
3. Upper spring
4. Lower spring
5. Adjuster
6. Shoe hold down spring
7. Shoe hold down pin
8. Shoe


Components (1)
1. Parking brake pedal 2. Parking brake cable 3. Equalizer assembly 4. Parking brake lever assembly ...

Parking Brake Assembly. Repair procedures
...
