Kia Optima: Components (1) - Parking Brake Assembly. Components and Components Location - Parking Brake System - Brake System - Kia Optima TF 2011-2020 Service ManualKia Optima: Components (1)

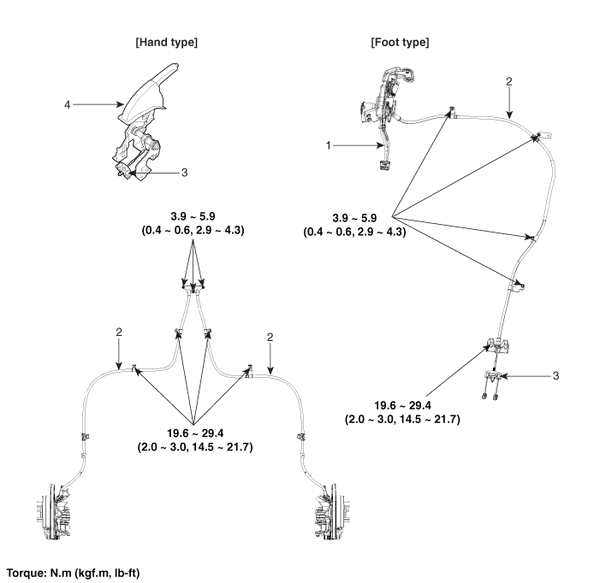

1. Parking brake pedal
2. Parking brake cable
3. Equalizer assembly
4. Parking brake lever assembly

Parking Brake Assembly. Components and Components Location
...

Components (2)
1. Backing plate 2. Operating lever 3. Upper spring 4. Lower spring 5. Adjuster 6. Shoe hold down spring 7. Shoe hold down pin 8. Shoe ...
